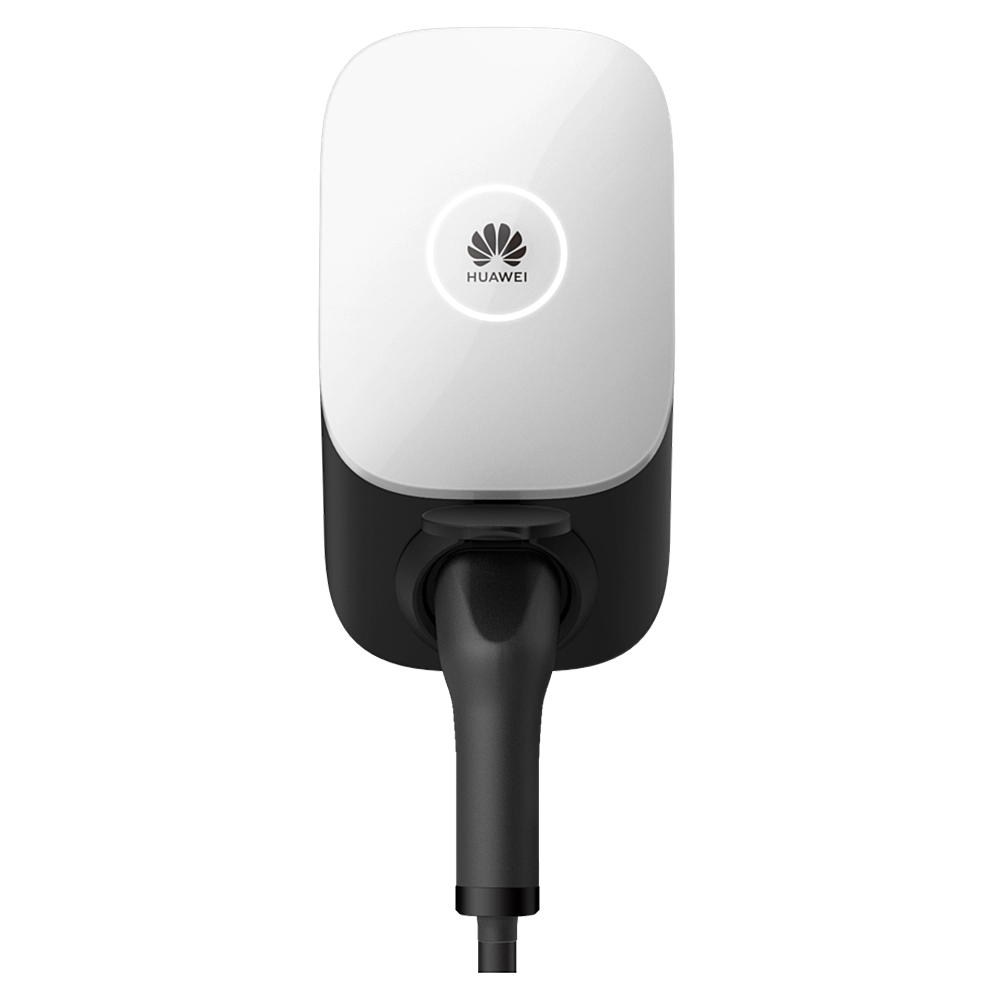

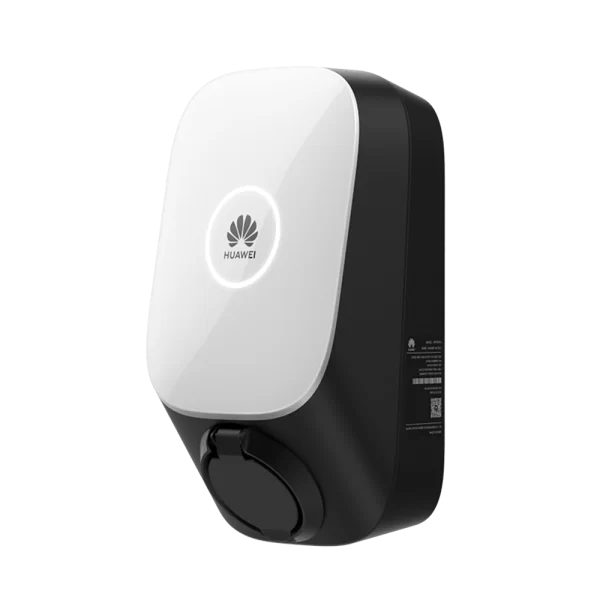

Huawei 7KS-S0/ 1Phase/ 7kW/ Wallbox

Huawei 1 Phase Smart Charger – charges Electric Cars with up to 7.4 kW charging power.

Description
Brand

Description

Huawei SCharger 1 Phase

Huawei Smart Charger 7KS – S0 – charges Electric Cars with up to 7.4 kW charging power. Different modes
like Fast Charging, Surplus Charging are selectable and scheduled charging times can be pre-programmed.
Compatible with all common charging cables. Access to the charging station is secured via RFID, Bluetooth and
app. A simple configuration of the Huawei SCharger 7KS-S0, which can be installed both indoors and outdoors,
makes commissioning via FusionSolar App very simple.

Features Huawei Smart Charger 7KS – S0

High security

– Full control through an app
– Cable e-lock for anti-theft

Dynamic Charging Power *2

– automatic detection and adjustment of the charging power
– integrated overload protection
*2 Available in Green Power Preferred Mode

Light and compact

– only 2.8 kg

Simple installation

– quick installation in 16 minutes
– wiring-free maintenance

Specifications

Тип изводи	Type 2 socket
Брой изводи	1
Изходяща мощност	до 7 000 W
Изходящо напрежение	400 V
Изходящ ток	32 A
Входящо напрежение	400 V
Входящ ток	32 A
Брой фази	1
Номинална мощност	7 kW
Безжична комуникация	Wi Fi
Конфигурация на връзката	TN, TT
Външен монтаж	Монтаж на стена

Защити	Cable protection (Cable E-Lock via App), Residual current protection (RCD) – Type A(30mA) + DC 6 mA integrated (IEC 62955 & IEC 61008-1), UL94 Fire Class, Overcurrent protection – IEC 61851-1, Over temperature protection, Surge protection (CAT II)

Размери (Ш, Д, В), mm	335 x 180 x 145
Тегло	3.1 kg
Стандарти	EN 61851-1 2019, IEC 62955:2018, IEC 61008-1 2010, IEC/EN 62196-1
Други	IP54
