LINCHR LCHS07C/ 1Phase/ 7kW/ Wallbox

H – Series Smart Charger LCHS07C – ideally suited for both home and commercial installation.

Description
Brand

Description

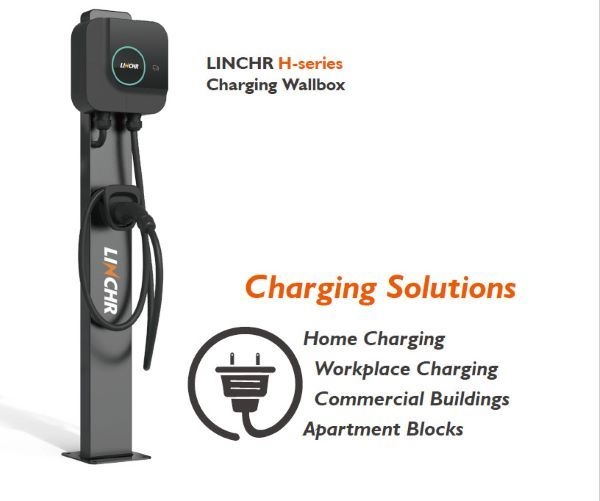

LINCHR H-series 1 Phase Smart Charger

LINCHR LCHS07C Smart Charger – charges Electric Cars with up to 7.4 kW charging power.
The H-Series are designed to provide a smart, cost-effective, and simple charging solution for
housebuilders and contractors to meet all their needs of installation within developments.
With AC 7kW, 11kW, and 22kW power options these chargers are ideally suited for both home
and commercial installation. The H-series applies a hierarchical maintenance design withbuilt-in
PEN protection allowing both developers and housebuilders to benefit from cost and timesavings,
plus safer and easier EV chargers installation.

Why Choose LINCHR H – Series ?

+ Type B DC 6mA + 30mA AC leakage protector
+ Various startup modes, RFID card, APP, plug in and charge.
+ Load balancing management and solar matching function.
+ Saving on electricity bills by scheduling off-peak charging.
+ Built in O-Pen protection ensures a quick installation with no extra
cost for an earth rod.
+ The Hierarchical maintenance design makes the maintenance and
replacement much easier.
+ Compliant with OCPP 1.6 JSON and compatible with most of the
charging network platforms in the European and UK market.
+ Over current, over voltage and short circuit protection, etc. make
charging much safer.

Specifications

Тип изводи	Type 2 socket
Брой изводи	1
Изх. мощност	до 7 000 W
Изх.напрежение	400 V
Изх. ток	32 A
Вх.напрежение	400 V
Вх. ток	32 A
Брой фази	1
Номинална мощност	7 kW
Безжична комуникация	Bluetooth/WiFi/Ethernet/4G/RS485
Конфигурация на връзката	TN, TT
Монтаж на стена	да
Външен монтаж	да
Защити	интегрирана защита от високо и ниско напрежение, късо съединение, дисперсионен ток, липсваща заземителна връзка и прегряване;
Дължина на кабела	5m

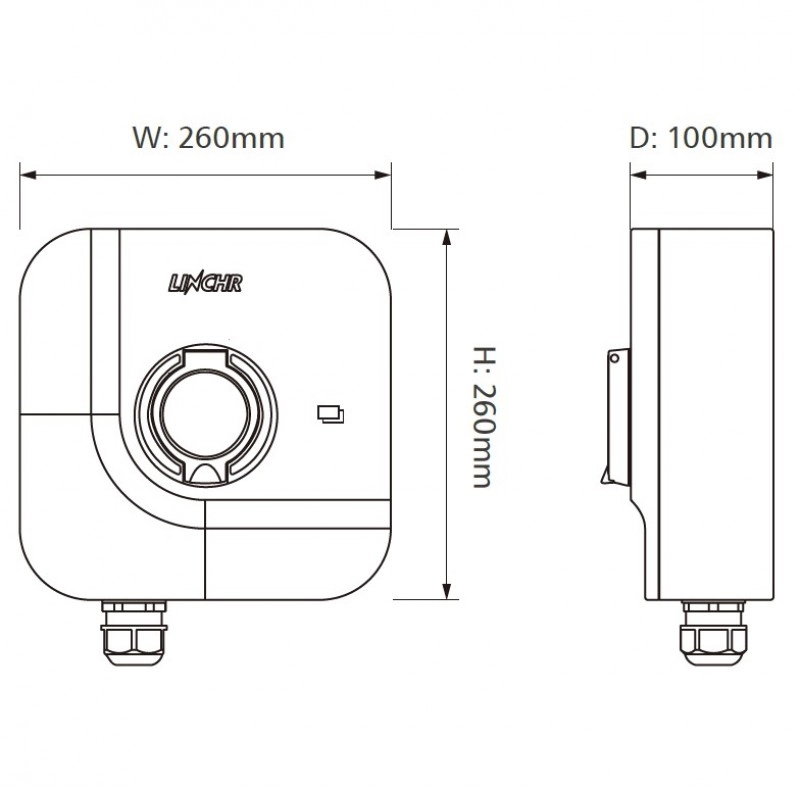

Размери (Ш, Д, В), mm	260260100
Тегло	2,7 kg
Стандарти	CE,UKCA, ROHS (TUV)
Други	IP65 (станция с кабел), IK10
